How could artificial photosynthesis contribute to limiting global warming?

Researchers publish calculations to remove CO2 from the atmosphere

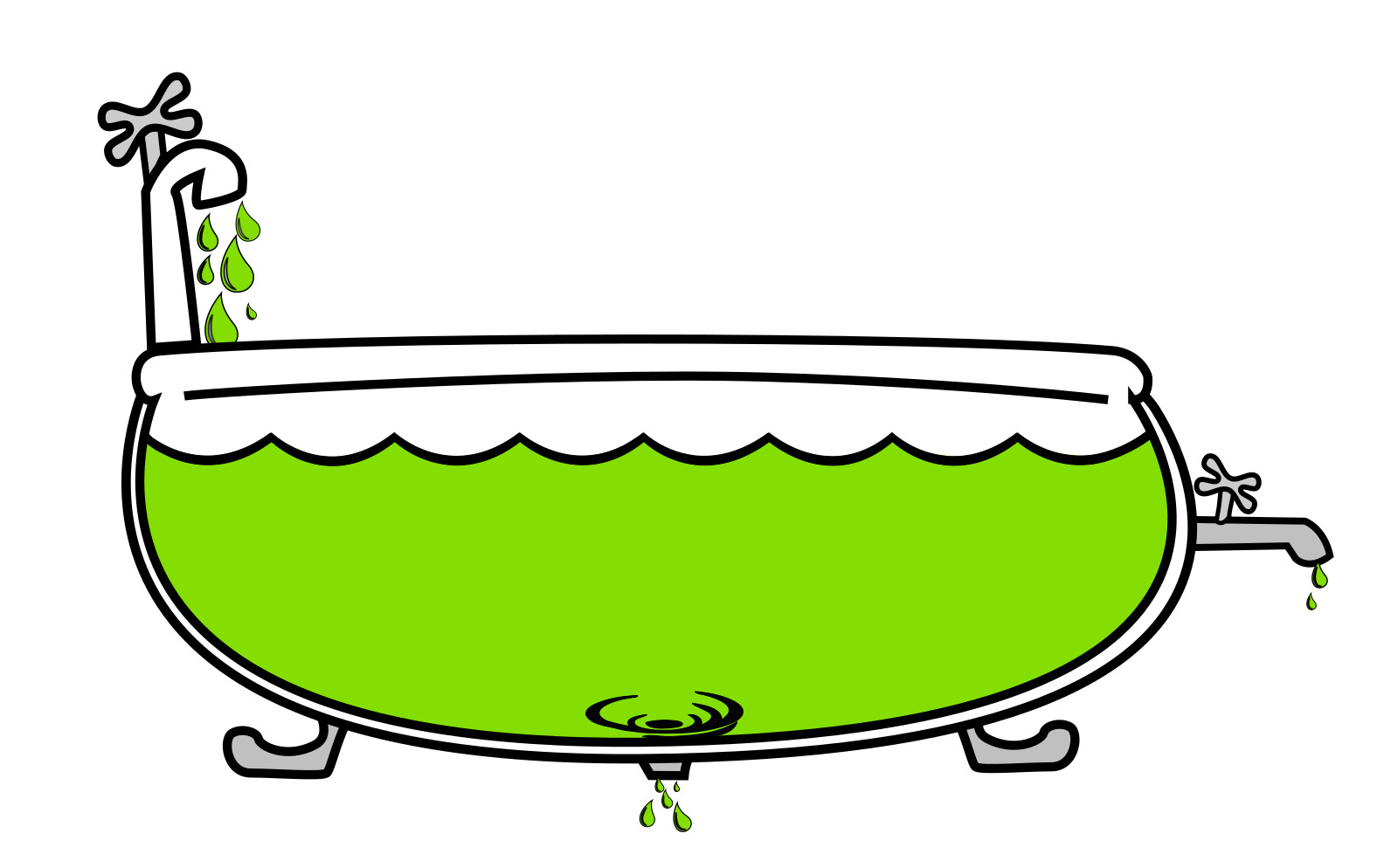

The atmosphere can be compared to a bathtub that can only be filled to its rim if global warming is to be limited to a certain level. We could create another small outward flow with negative emissions. However, there is no way around turning off the tap. Copyright: M.May/HZB

If CO₂ emissions do not fall fast enough, then CO₂ will have to be removed from the atmosphere in the future to limit global warming. Not only could planting new forests and biomass contribute to this, but new technologies for artificial photosynthesis as well. An HZB physicist and a researcher at the University of Heidelberg have estimated how much surface area such solutions would require. Although artificial photosynthesis could bind CO₂ more efficiently than the natural model, there are still no large modules that are stable over the long term. The team published their calculations in "Earth System Dynamics".

After several years during which global emissions at least stagnated, they rose again somewhat in 2017 and 2018. Germany has also clearly missed its climate targets. In order to keep global warming below 2 degrees Celsius, only about 1100 gigatonnes of CO₂ may be released into the atmosphere by 2050 ^[1]. And In order to limit global warming to 1.5 degrees, only just under 400 gigatonnes of CO₂ may be emitted worldwide. By 2050, emissions will have to fall to zero even. Currently, however, 42 gigatonnes of CO₂ are added every year.

Almost all the various scenarios require “negative emissions”

The Intergovernmental Panel on Climate Change (IPCC) has numerically simulated various scenarios. Only in the most optimistic scenario can the climate target still be achieved by means of immediate and drastic measures in all sectors (transport, agriculture, construction, energy, etc.). In the less optimistic scenarios, the global community will have to take additional measures beginning in 2030 or by 2050 at the latest: we will have to implement “negative emissions” by removing large quantities of CO₂ from the atmosphere and store them permanently in order to balance the carbon budget. One example of negative emissions is large-scale forestation – forests bind CO₂ in wood as long as it is not later used as fuel. But CO₂ could also be removed from the atmosphere and bound using artificial photosynthesis.

Physicists have now calculated how this might work. Dr. Matthias May of the HZB Institute for Solar Fuels is an expert in artificial photosynthesis. Dr. Kira Rehfeld is an environmental physicist at the University of Heidelberg studying climate and environmental variability.

Natural photosynthesis: a surface area the size of Europe would have to be forested

In a median scenario, at least 10 gigatonnes of CO₂ per year would have to be removed from the atmosphere beginning around 2050 to balance the climate carbon budget. Forestation and cultivation of biomass for reducing CO₂ compete for the same areas as are needed for agriculture, however. With just more biomass alone, it is therefore difficult to reach this scale, for natural photosynthesis is not a particularly efficient process. Leaves are able to use a maximum of two per cent of the light for converting CO₂ and water into new chemical compounds. The two physicists argue that in order to bind 10 gigatonnes of CO₂ per year in the forest, about 10 million square kilometres of the fertile areas on Earth would have to be planted with new forest. This corresponds to the area of continental Europe (up to the Urals!).

With artificial photosynthesis, an area the size of the State of Brandenburg could suffice

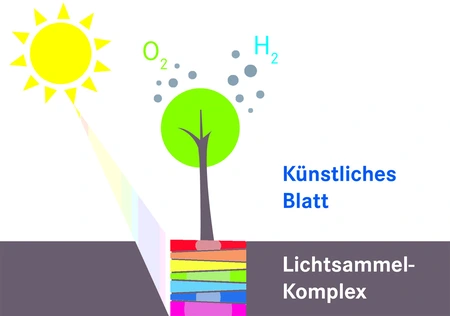

Materials systems currently being researched for artificial photosynthesis might bind CO₂ with considerably greater efficiency. Already today, on a lab scale, photo-electrochemical systems made of semiconductor materials and oxides can utilise about nineteen per cent of the light to split water, for example, and thus realize part of the photosynthesis process. However, the material system envisaged by May and Rehfeld is not about producing hydrogen with sunlight, but instead about binding CO₂ molecules and converting them into stable chemical compounds. „However, this is a relatively similar problem from the point of view of physical chemistry”, says May.

The prerequisite, however, is that it will be possible to develop by 2050 large-scale, durable modules that use solar energy to convert atmospheric CO₂ into other compounds. The required area for this solution can be calculated. Assuming efficiency of nineteen per cent and fifty per cent system losses, around 30,000 square-kilometres of modules could be sufficient to extract 10 gigatonnes of CO₂ from the atmosphere annually. This corresponds to the approximate area of the German federal State of Brandenburg.

"These kinds of modules could be placed in non-agricultural regions – in deserts, for example. In contrast to plants, they require hardly any water to operate, and their efficiency does not suffer when exposed to intense solar radiation,” explains May. The extracted CO₂ could be converted to formic acid, alcohol or oxalate and combined with other compounds (such as calcium chloride) to form solid minerals that can be stored or even used in the form of plastic as a building material.

Focus on development, not on miracles

Even if May and Rehfeld are convinced that such solutions should be considered more closely, they warn against relying on technical miracles. This is because such systems still only function at the smallest scale, are expensive, and not stable in the long term. Changing this requires large investments in research and development.

“It might be possible to develop such modules, but even if we could then build them, we estimate that the conversion will cost at least 65 euros per tonne of CO₂. The extraction of 10 gigatonnes of CO₂ thus results in costs of 650 billion euros each year. Moreover, negative emissions can only be the last resort to slow dramatic climate developments. The best thing now would be to drastically reduce emissions immediately – that would be safer and much cheaper”, says May.

^[1] Source: IPCC SR15 Report, those given values are necessary to reach the goal with a probability of 66 %. For higher probabilities, stricter reductions must be attained. A short explanation can be found here: www.mcc-berlin.net/en/research/co2-budget.html

Publication: Matthias M. May and Kira Rehfeld: Photoelectrochemical carbon removal as negative emission technology
'Earth System Dynamics' 2019: ESD Ideas. DOI: 10.5194/esd-10-1-2019
